Cross Section

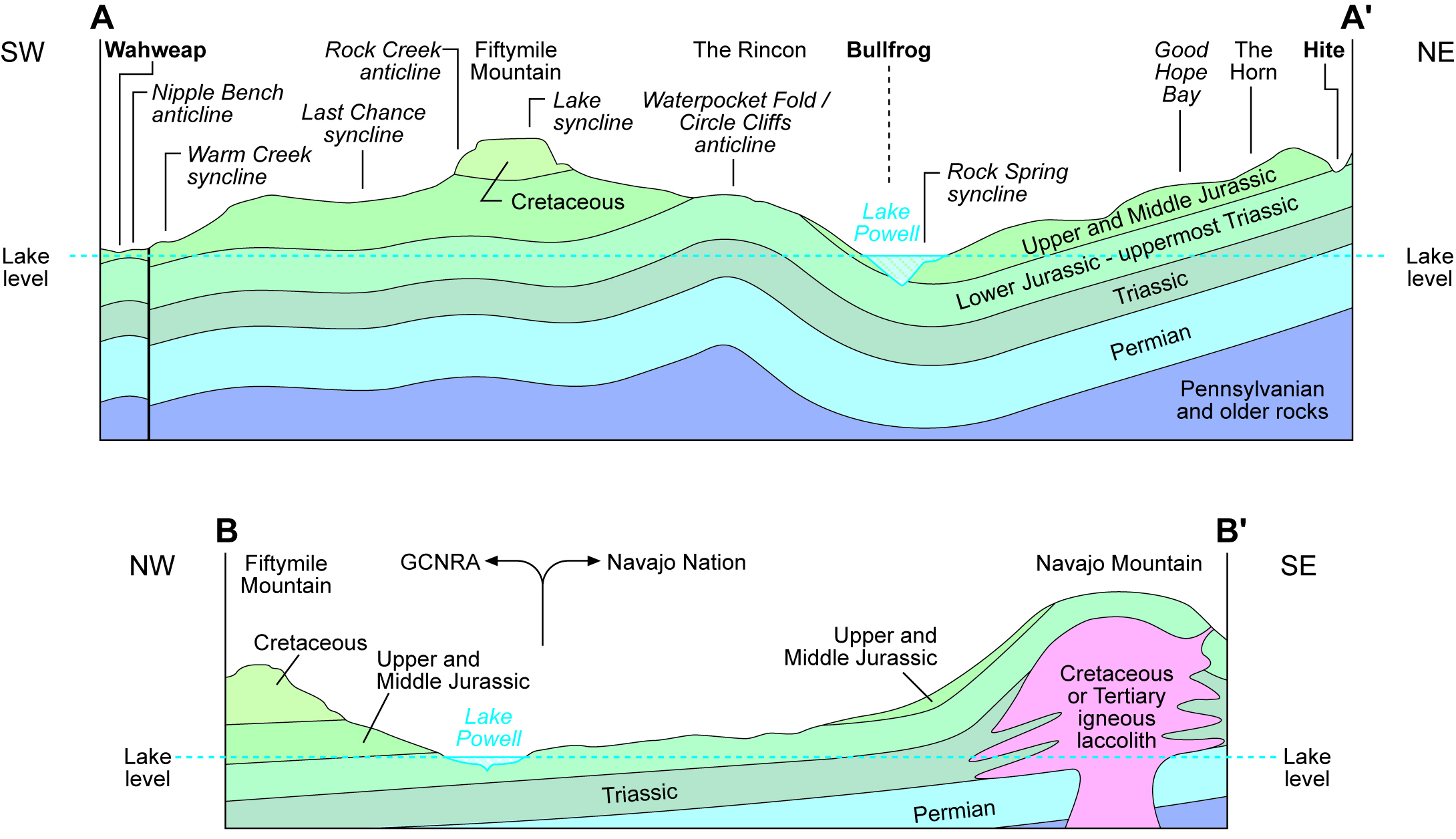

Exaggerated geologic cross-sections for Glen Canyon National Recreation Area.

Exaggerated geologic cross-sections for Glen Canyon National Recreation Area. The cross-sections illustrate the relatively undeformed nature of the strata with broad anticlines (A-shaped folds) and synclines (U-shaped folds). The Navajo Mountain laccolith in cross-section B-B’ cuts Lower Jurassic-Upper Triassic strata, indicating that emplacement of the igneous unit occurred after the Late Jurassic.

Permission must be secured from the individual copyright owners to reproduce any copyrighted materials contained within this website. Digital assets without any copyright restrictions are public domain.

Cross-sections from Anderson et al. (2010, figure 5).
